워터 베이스

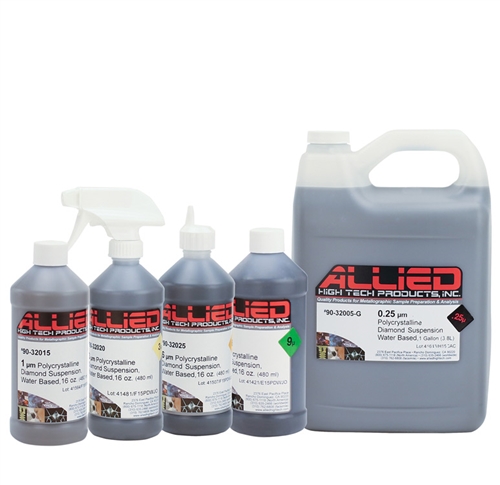

Water Based Diamond Suspensions - Polycrystalline
- Polycrystalline Diamond - Polycrystalline Diamond has many more cutting surfaces per particle, resulting in higher removal rates. As it cuts, it breaks down in its original shape, allowing for finer finishes in less time than when using monocrystalline diamond. Because polycrystalline diamond has no cleavage planes, it cannot splinter like monocrystalline diamond. It causes less sub-surface deformation, and is excellent when polishing samples composed of different materials/hardness.
- Water soluble and environmentally friendly, this 99% water based formula is recommended for manual application or automatic –"spray"/"drip" dispensing systems, where lubricant is also applied.
Allied
제품 LIST
연관 제품
제품 사용법 및 사양
- Allied의 다이아몬드 용액은 다이아몬드 입자가 용액에 골고루 분산 되도록 조성되었으며, 연마천 또는 플레이튼 표면에 균일하게 분산이 잘 되며, 알코올, 글리콜 또는 워터 베이스 제품이 있다. 모든 8 oz.와 16 oz. 용기는 편리하게 공급할 수 있는 Flip-top 마개와 조절형 분무기가 제공된다. 갤론 사이즈의 제품에는 편리한 사용을 위해 덜어 쓸 수 있는 사이즈가 표기된 16oz. 빈 병을 제공한다.
- 수용성이며, 용매가 99% 물로 구성된 친환경적인 제품으로 수동연마나 윤활제를 사용하는 자동 스프레이/드립 디스펜싱 시스템에 사용 가능
제품 LIST
| 사진 | 제품번호 | 수량 | 설명 |
|---|---|---|---|
|
|
90-31995 | Diamond Compound, Polycrystalline, 0.05 Micron 18 Gram Syringe | |
|
90-31995-G | Diamond Suspension, Water Based Polycrystalline, 0.05 Micron, 128 oz. (3.8 L) | |
|
90-32000 | Diamond Suspension, Water Based Polycrystalline, 0.10 Micron, 16 oz. (480 mL) | |
|
90-32000-G | Diamond Suspension, Water Based Polycrystalline, 0.10 Micron, 128 oz. (3.8 L) | |
|
90-32005 | Diamond Suspension, Water Based Polycrystalline, 0.25 Micron, 16 oz. (480 mL) | |
|
90-32005-G | Diamond Suspension, Water Based Polycrystalline, 0.25 Micron, 128 oz. (3.8 L) | |
|
90-32010 | Diamond Suspension, Water Based Polycrystalline, 0.50 Micron, 16 oz. (480 mL) | |
|
90-32010-G | Diamond Suspension, Water Based Polycrystalline, 0.50 Micron, 128 oz. (3.8 L) | |
|
90-32015 | Diamond Suspension, Water Based Polycrystalline, 1 Micron, 16 oz. (480 mL) | |
|
90-32015-G | Diamond Suspension, Water Based Polycrystalline, 1 Micron, 128 oz. (3.8 L) | |
|
90-32020 | Diamond Suspension, Water Based Polycrystalline, 3 Micron, 16 oz. (480 mL) | |
|
90-32020-G | Diamond Suspension, Water Based Polycrystalline, 3 Micron, 128 oz. (3.8 L) | |
|
90-32025 | Diamond Suspension, Water Based Polycrystalline, 6 Micron, 16 oz. (480 mL) | |
|
90-32025-G | Diamond Suspension, Water Based Polycrystalline, 6 Micron, 128 oz. (3.8 L) | |
|
90-32030 | Diamond Suspension, Water Based Polycrystalline, 9 Micron, 16 oz. (480 mL) | |
|
90-32030-G | Diamond Suspension, Water Based Polycrystalline, 9 Micron, 128 oz. (3.8 L) | |
|
90-32035 | Diamond Suspension, Water Based Polycrystalline, 15 Micron, 16 oz. (480 mL) | |
|
90-32035-G | Diamond Suspension, Water Based Polycrystalline, 15 Micron, 128 oz. (3.8 L) | |
|
90-32040 | Diamond Suspension, Water Based Polycrystalline, 30 Micron, 16 oz. (480 mL) | |
|
90-32040-G | Diamond Suspension, Water Based Polycrystalline, 30 Micron, 128 oz. (3.8 L) |
