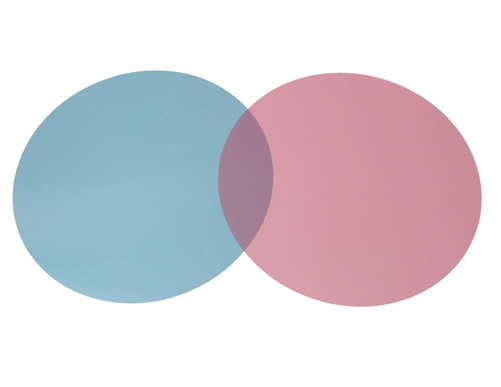

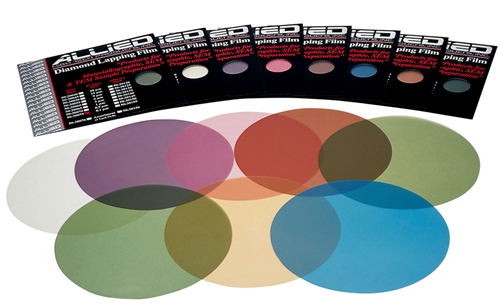

Diamond Lapping Film
Discs - 12"

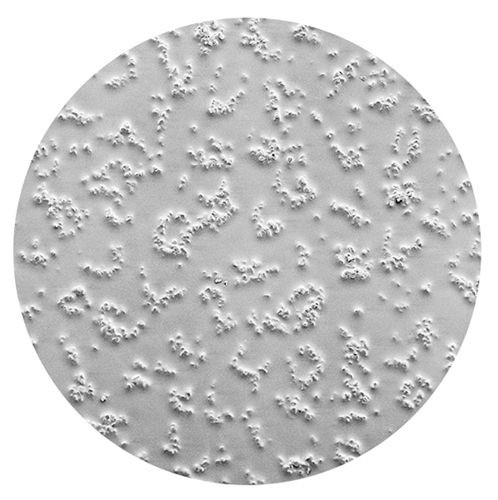

- Standard Diamond Lapping Film consists of precision graded diamond particles resin bonded to a uniform mylar film. They provide excellent edge retention and maintain coplanarity regardless of varying materials or hardness within the sample. Typically used for unencapsulated cross-sectioning, TEM wedge/plan-view polishing, backside polishing and FIB sample thinning.
Allied
제품 LIST
연관 제품
제품 사용법 및 사양
- 두께가 균일한 평탄한 필름 위에 다이아몬드를 수지로 접착 시킴
- 시편 내부에 여러 가지 재질 또는 경도 차이가 있는 재료로 구성되더라도 탁월한 모서리 유지특성 (edge retention) 및 평탄도를 유지
- 몰딩이 안된 단면관찰용 시편, TEM wedge/plan-view 연마, backside 연마, FIB thinning 목적에 적합
제품 LIST
| 사진 | 제품번호 | 수량 | 설명 |
|---|---|---|---|
|
|
50-31238 | Diamond Lapping Film, 35 Micron, 12 | |
|
50-31240 | Diamond Lapping Film, 30 Micron, 12" Disc (Pk/5) | |
|
50-31245 | Diamond Lapping Film, 15 Micron, 12" Disc (Pk/5) | |
|
50-31250 | Diamond Lapping Film, 9 Micron, 12" Disc (Pk/5) | |
|
50-31255 | Diamond Lapping Film, 6 Micron, 12" Disc (Pk/5) | |
|
50-31260 | Diamond Lapping Film, 3 Micron, 12" Disc (Pk/5) | |
|
50-31265 | Diamond Lapping Film, 1 Micron, 12" Disc (Pk/5) | |
|
50-31270 | Diamond Lapping Film, 0.5 Micron, 12" Disc (Pk/5) | |
|
50-31275 | Diamond Lapping Film, 0.1 Micron, 12" Disc (Pk/5) | |
|
50-30160 | Diamond Lapping Film, 30 Micron, 12" Adhesive Back Disc (Pk/5) | |
|
50-30165 | Diamond Lapping Film, 15 Micron, 12" Adhesive Back Disc (Pk/5) | |
|
50-30170 | Diamond Lapping Film, 9 Micron, 12" Adhesive Back Disc (Pk/5) | |
|
50-30175 | Diamond Lapping Film, 6 Micron, 12" Adhesive Back Disc (Pk/5) | |
|
50-30180 | Diamond Lapping Film, 3 Micron, 12" Adhesive Back Disc (Pk/5) | |
|
50-30185 | Diamond Lapping Film, 1 Micron, 12" Adhesive Back Disc (Pk/5) | |
|
50-30190 | Diamond Lapping Film, 0.5 Micron, 12" Adhesive Back Disc (Pk/5) | |
|
50-30195 | Diamond Lapping Film, 0.1 Micron, 12" Adhesive Back Disc (Pk/5) |
