Diamond Lapping Film
Discs - 08"

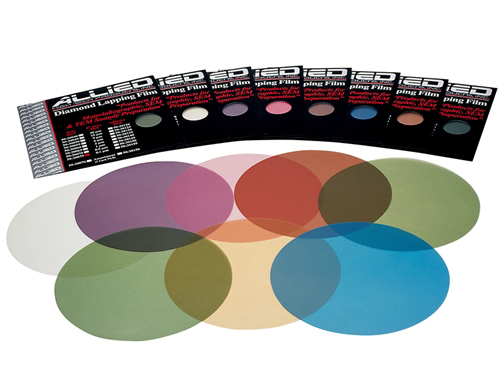

- Standard Diamond Lapping Film consists of precision graded diamond particles resin bonded to a uniform mylar film. They provide excellent edge retention and maintain coplanarity regardless of varying materials or hardness within the sample. Typically used for unencapsulated cross-sectioning, TEM wedge/plan-view polishing, backside polishing and FIB sample thinning.
Allied
제품 LIST
연관 제품
제품 사용법 및 사양
- 두께가 균일한 평탄한 필름 위에 다이아몬드를 수지로 접착 시킴
- 시편 내부에 여러 가지 재질 또는 경도 차이가 있는 재료로 구성되더라도 탁월한 모서리 유지특성 (edge retention) 및 평탄도를 유지
- 몰딩이 안된 단면관찰용 시편, TEM wedge/plan-view 연마, backside 연마, FIB thinning 목적에 적합
제품 LIST
| 사진 | 제품번호 | 수량 | 설명 |
|---|---|---|---|
|
|
50-30030 | Diamond Lapping Film, 60 Micron, 8 | |
|
50-30035 | Diamond Lapping Film, 45 Micron, 8" Disc (Pk/5) | |
|
50-30038 | Diamond Lapping Film, 35 Micron, 8" Disc (Pk/5) | |
|
50-30040 | Diamond Lapping Film, 30 Micron, 8" Disc (Pk/5) | |
|
50-30045 | Diamond Lapping Film, 15 Micron, 8" Disc (Pk/5) | |
|
50-30050 | Diamond Lapping Film, 9 Micron, 8" Disc (Pk/5) | |
|
50-30055 | Diamond Lapping Film, 6 Micron, 8" Disc (Pk/5) | |
|
50-30060 | Diamond Lapping Film, 3 Micron, 8" Disc (Pk/5) | |
|
50-30065 | Diamond Lapping Film, 1 Micron, 8" Disc (Pk/5) | |
|
50-30070 | Diamond Lapping Film, 0.5 Micron, 8" Disc (Pk/5) | |
|
50-30073 | Diamond Lapping Film, 0.25 Micron, 8" Disc (Pk/5) | |
|
50-30075 | Diamond Lapping Film, 0.1 Micron, 8" Disc (Pk/5) | |
|
50-30076 | Diamond Lapping Film Assortment Pack, 8" Disc (1 each of 35, 30, 15, 9, 6, 3, 1, 0.5, 0.25, & 0.1 Micron) | |
|
50-30118 | Diamond Lapping Film, 35 Micron, 8" Adhesive Back Disc (Pk/5) | |
|
50-30120 | Diamond Lapping Film, 30 Micron, 8" Adhesive Back Disc (Pk/5) | |
|
50-30125 | Diamond Lapping Film, 15 Micron, 8" Adhesive Back Disc (Pk/5) | |
|
50-30130 | Diamond Lapping Film, 9 Micron, 8" Adhesive Back Disc (Pk/5) | |
|
50-30135 | Diamond Lapping Film, 6 Micron, 8" Adhesive Back Disc (Pk/5) | |
|
50-30140 | Diamond Lapping Film, 3 Micron, 8" Adhesive Back Disc (Pk/5) | |
|
50-30145 | Diamond Lapping Film, 1 Micron, 8" Adhesive Back Disc (Pk/5) | |
|
50-30150 | Diamond Lapping Film, 0.5 Micron, 8" Adhesive Back Disc (Pk/5) | |
|
50-30153 | Diamond Lapping Film, 0.25 Micron, 8" Adhesive Back Disc (Pk/5) | |
|
50-30155 | Diamond Lapping Film, 0.1 Micron, 8" Adhesive Back Disc (Pk/5) | |
|
50-30156 | Diamond Lapping Film Assortment Pack, 8" Adhesive Back Disc (1 each of 35, 30, 15, 9, 6, 3, 1, 0.5, 0.25, & 0.1 Micron) |
