Aluminum Oxide Lapping Films
- Aluminum Oxide Lapping film consists of a mylar polishing film coated with resin containing aluminum oxide particles. It is recommended for fine grinding and lapping applications where edge retention is important. Polishing film is for use with either encapsulated or unencapsulated samples but are not recommended for power head applications.
- Features:
* Micron graded premium abrasives to produce precise finishes in grades 30 to 1 micron
* Precision backing for uniformity and sample planarity
* Resists water, oil and most solvents

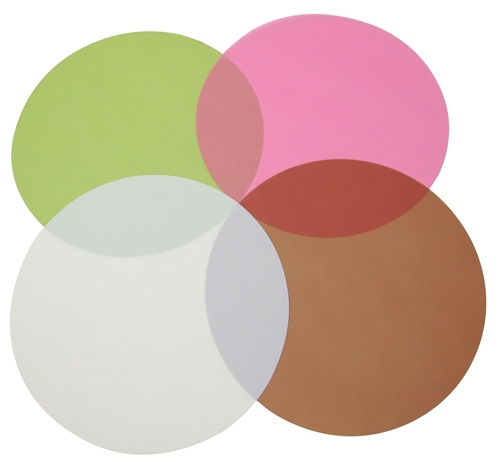

* Color-coded for quick identification
* Use for encapsulated or non-encapsulated samples
* Not recommended for power head applications
Allied
제품 LIST
연관 제품
제품 사용법 및 사양
- 알루미나 랩핑 필름 : 철계 금속 응용
- 알루미나, 실리콘 카바이드, 실리카를 포함하고 있는 레진이 코팅된 마이라 (mylar) 필름
- 모서리 유지 특성(edge retention)이 특히 요구되는 정교한 연마와 랩핑에 적합 30 ~ 0.01 마이크론 정밀 마무리에 적합
- 시편의 균질성 및 평면성 확보에 적합
- 내수, 내오일 및 내솔벤트 특성
- 색상이 있어 구분 용이
- 몰딩된 샘플이나 몰딩되지 않은 샘플에 모두 적합
- 파워헤드가 있는 폴리셔에는 사용하지 말 것!
제품 LIST
| 사진 | 제품번호 | 수량 | 설명 |
|---|---|---|---|
|
|
50-20040 | Aluminum Oxide Lapping Film, 30 Micron, 8 | |
|
50-20045 | Aluminum Oxide Lapping Film, 12 Micron, 8" Disc (Pk/50) | |
|
50-20050 | Aluminum Oxide Lapping Film, 9 Micron, 8" Disc (Pk/50) | |
|
50-20052 | Aluminum Oxide Lapping Film, 5 Micron, 8" Disc (Pk/50) | |
|
50-20055 | Aluminum Oxide Lapping Film, 3 Micron, 8" Disc (Pk/50) | |
|
50-20060 | Aluminum Oxide Lapping Film, 1 Micron, 8" Disc (Pk/50) | |
|
50-20065 | Aluminum Oxide Lapping Film, 0.3 Micron, 8" Disc (Pk/50) | |
|
50-20067 | Aluminum Oxide Lapping Film, 0.05 Micron, 8" Disc (Pk/50) | |
|
50-20070 | Aluminum Oxide Lapping Film Assortment Pack, 8" Disc (10 each of 30, 12, 9, 5, 3, 1, 0.3, & 0.05 Micron) | |
|
50-20120 | Aluminum Oxide Lapping Film, 9 Micron, 8" Adhesive Back Disc (Pk/50) | |
|
50-20123 | Aluminum Oxide Lapping Film, 5 Micron, 8" Adhesive Back Disc (Pk/50) | |
|
50-20125 | Aluminum Oxide Lapping Film, 3 Micron, 8" Adhesive Back Disc (Pk/50) | |
|
50-20130 | Aluminum Oxide Lapping Film, 1 Micron, 8" Adhesive Back Disc (Pk/50) | |
|
50-20135 | Aluminum Oxide Lapping Film, 0.3 Micron, 8" Adhesive Back Disc (Pk/50) |
